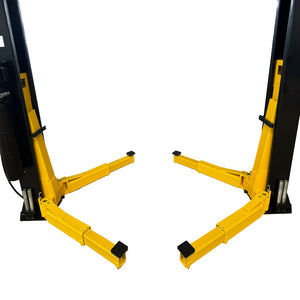

APlusLift AP-14SR Two-Post Overhead Lift – 14,000 lb, ALI Certified

The APlusLift AP-14SR is a robust, ALI-certified 2-post car lift engineered for professional-grade vehicle service. Boasting a powerful 14,000 lb (approximately 6,350 kg) capacity, this overhead lift is ideal for handling a wide range of vehicles, including large SUVs, trucks, and other heavy-duty automobiles. Its design incorporates a convenient single-point safety lock release system and a highly efficient direct drive hydraulic system, ensuring reliable, smooth, and consistent performance with every lift and lower cycle.
Constructed with industrial-grade Q235B steel and finished with a durable powder coating for enhanced longevity and rust resistance, the AP-14SR is built to withstand demanding workshop environments. It features symmetrical arm assemblies for balanced lifting and includes two sets of truck adapters (2-3/4″ and 5-1/2″ heights) to accommodate various vehicle frames and lifting points. The lift is equipped with a robust safety system, including an overhead safety shutoff bar to prevent overextension and a height limit switch. The robot-welded finish further underscores its commitment to strength, safety, and stability, making it a reliable investment for automotive professionals.
Key Features
High Lifting Capacity: 14,000 lbs (6,350 kg), perfect for a broad range of heavy-duty vehicles including SUVs and trucks.
Single Point Lock Release: Simplifies the lowering process while ensuring maximum safety during operation.
Direct Drive Cylinders: Enhances lift efficiency and significantly reduces overall maintenance requirements.
Symmetrical Arm Assembly: Provides balanced and secure lifting, accommodating large and irregularly shaped vehicles effectively.
Height Limit Switch: An essential safety feature that prevents the hydraulic cylinders from overextending beyond their safe operational limits.
Durable Powder Coated Structure: Features a robot-welded, rust-resistant powder-coated finish for long-lasting durability in demanding shop environments.
Included Truck Adapters: Comes with two sets of height extensions: 2.6″ (66 mm) and 5.5″ (140 mm), increasing versatility for various vehicle types.
Overhead Safety Shutoff Bar: Provides an additional layer of safety by detecting overhead obstructions during lifting.
Industry-Leading Warranty: Backed by a comprehensive 3-Year Parts Warranty, ensuring peace of mind and long-term support.
ALI Certified: Ensures compliance with industry safety and performance standards.
Ideal For
Professional auto shops and service centers
Heavy-duty truck and commercial vehicle service
Technical Specifications
Capacity
14,000 lbs (6,350 kg)
Max Lift Height w/ Truck Adapters
79.6″ (6 ft. 7.6 in. or 2,022 mm)
Max Lift Height without Adapters
74.1″ (6 ft. 2.1 in. or 1,882 mm)
Overall Height
165.3″ (13 ft. 9.3 in. or 4,199 mm)
Overall Width
142.1″ (11 ft. 10.1 in. or 3,609 mm)
Drive-Thru Width
104.1″ (8 ft. 8.1 in. or 2,644 mm)
Power
220V Single Phase, 3.0 HP (30A breaker recommended)
Lifting Time
75 seconds
Steel Thickness (Column/Carriage)
1/4″ (6.35 mm)
Steel Thickness (Base)
5/8″ (15.88 mm)
Truck Adapter Heights Included
2.6″ (66 mm) and 5.5″ (140 mm)
